C11四灯室外防水监控球机

APP:

V380 Pro

System structure:

Embedded Linux system, ARM chip structure

Chip:

AK3918E

Resolution:

1.0MP

Sensor Resolution:

1/4″SC1345 1280*720

Lens:

4MM

View angle:

80°

Pan-tilt:

Rotates Horizontal:355° Vertical：90°

Preset point quantity:

6

Video compression standard:

H.264/20FPS

Video format:

PAL

Minimum illumination:

0.01Lux@（F2.0，VGC ON),O.Luxwith IR

Electronic shutter:

Auto

Backlight compensation:

Support

Noise reduction:

2D、3D

LED quantity:

4pcs Dual core LED

Network connection:

WIFI, AP Hotspot, RJ45 Network port

Network:

WIFI wireless transmission (support IEEE802.11b/g/n wireless protocol).

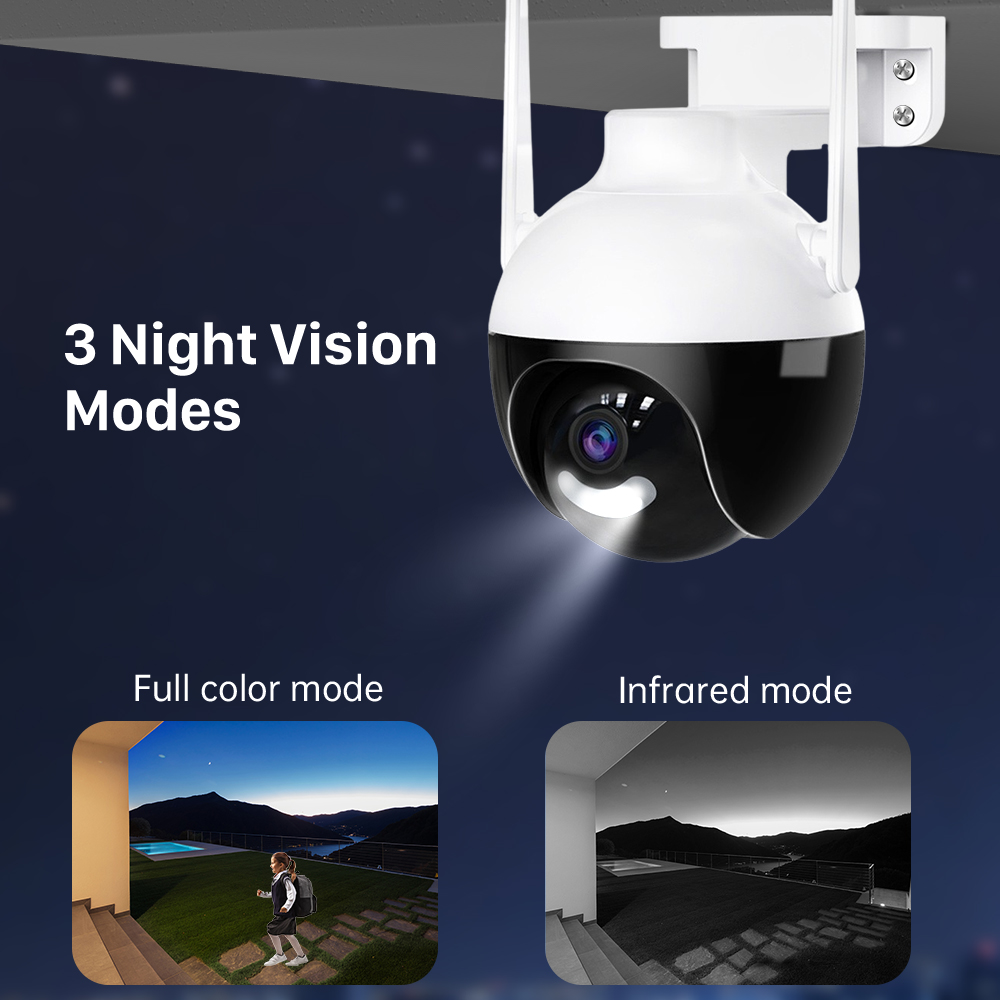

Night vision:

IR-CUT switch Automatic，about 5-8meters (It varies from environment)
White Led can be remote control via APP:①Turn ON ②Turn OFF ③ Auto
(In automatic mode, the infrared light will be turned ON after the IR-cut switch to night vision automatically , it can
intelligently detected human body, and Turn ON/OFF the White light intelligently )

Audio:

Built-in microphone and speaker, support two-way audio and real-time transmission.
ADPCM audio compression standard, self-adapt to code stream

Network protocol:

TCP/IP、UDP、HTTP、 DDNS、DHCP、FTP、NTP

Alarm:

①Motion detection and picture push ②AI Human intrusion Detection (optional)

ONVIF

Support ONVIF

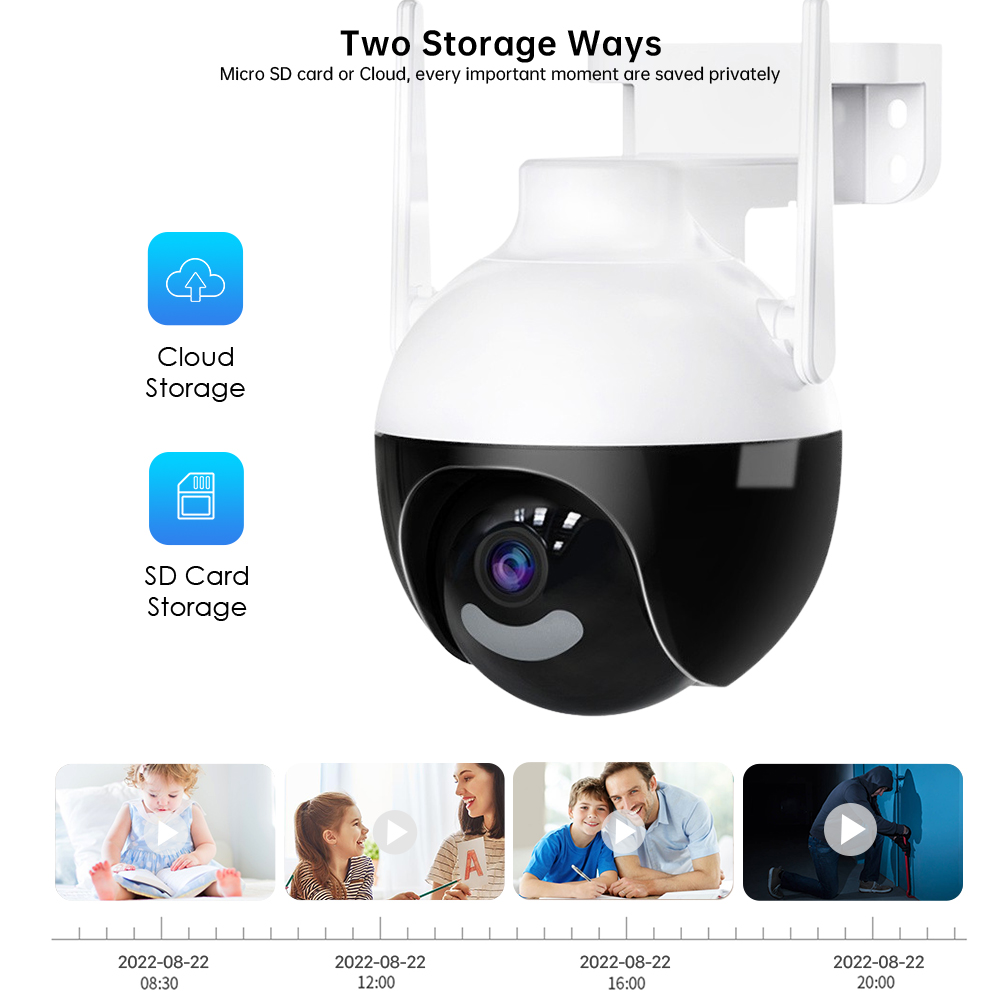

Storage:

TF Card（Max 128G）；Cloud storage /Cloud disk (optional)

Power input:

12V/2A Waterproof power supply (not including power supply), 5525 DC input

Work environment:

Working temperature:-10℃ ~ + 50℃ Working Humidity: ≤95%RH
